Option B: T-Bar Ceiling Mount

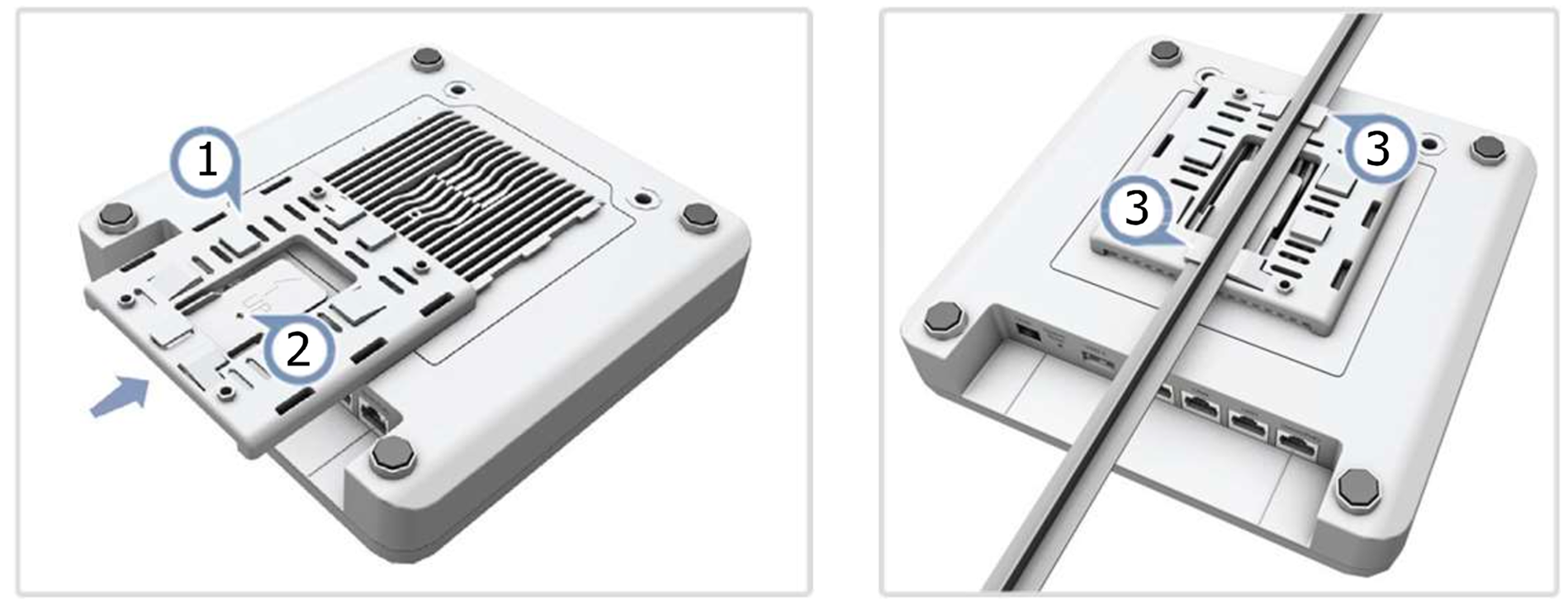

  1. Slide the bracket accessory onto the base of the AP until it clicks into its locked position.

  2. Use the included security screw to secure the bracket to the AP.

  3. Position the ceiling-mount clip holders on either side of the T-bar, and then turn the AP until the two clips lock it into the T-bar.


Note: The AP mounting supports two different sizes of suspended ceiling T-bars. The position illustrated is for 24.5 mm bars. Use the position at a 90 degree angle for 15 mm bars.
